Vibrating screen systems use stainless steel hardware instead of traditional nylon bags. This method can be used either as a second wash to further clean already collected heads or as a first pass alternative to bag-based methods. Is this just a refinement tool for perfectionists, or could it be the next step in the evolution of solventless extraction?

Let's break down how these systems work and what they bring to the table.

What Is a Vibrating Screen Hash Wash System?

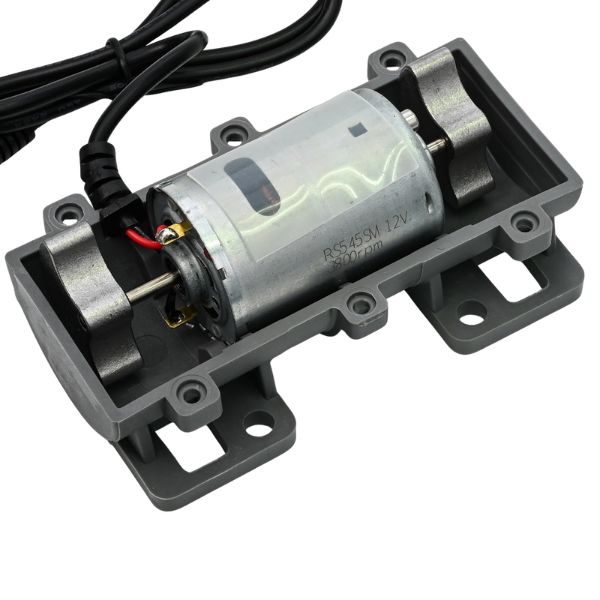

A vibrating screen hash wash system consists of a stainless steel vessel with a stack of precision-micron stainless screens and a vibrating motor attached to the side. The setup is designed to filter resin through multiple layers of screens using constant vibration instead of manual agitation.

The purpose of the vibration is twofold. It creates constant micro-movement that helps water and resin pass through the screens more efficiently, while it improves the clarity and purity of the final hash by providing gentle, consistent separation.

Key Components of the Setup

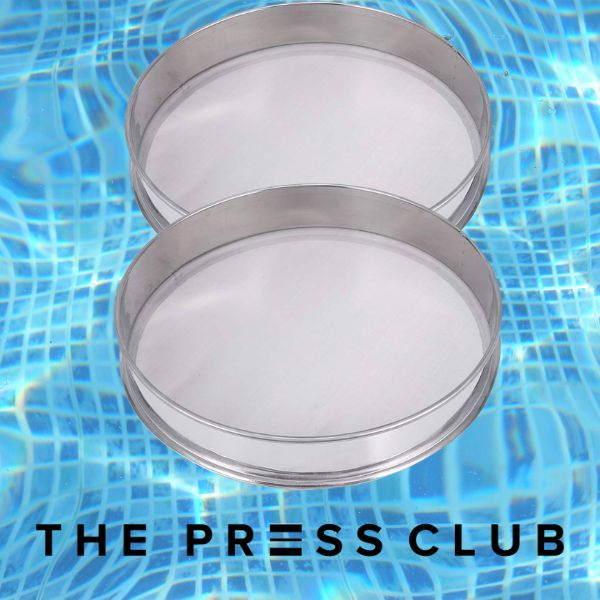

Stacked Stainless Steel Screens

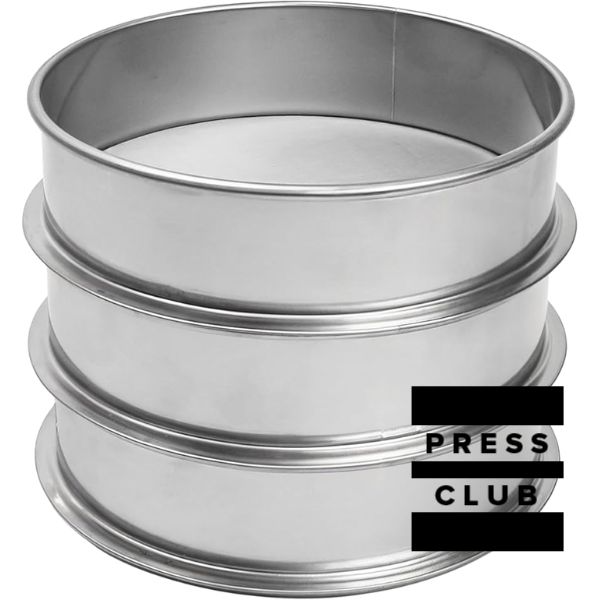

These are round, stackable filters with solid sidewalls that create a vertical filtration chamber. The screens are arranged from largest micron on top to smallest on bottom, allowing resin to pass through progressively finer layers. Each screen is removable, which lets you collect and clean hash from each micron grade independently.

Dual Vessel Setup
The system typically uses two vessels. Vessel one is used to rehydrate resin, especially if you're working with freeze-dried material from a previous wash. Vessel two contains the vibrating stack of screens for filtration. A controlled pour from the first vessel to the second prevents overflow and ensures an optimal flow rate through the screens.

Step-by-Step Process Overview

Here's how the process generally works.

1. Start by rehydrating freeze-dried resin in the first vessel with cold water. You can also do an initial wash in this vessel, if you're not starting with resin.

2. Get the vibration going in the second vessel. Slowly transfer the water and resin mixture into the screen stack, controlling the flow rate carefully.

3. The combination of gravity and vibration pushes trichome heads through each screen layer. As the water drains through, resin gets caught at each micron level based on size.

4. Collect hash from each screen using a silicone spatula once the filtration is complete. The key throughout this process is avoiding overflow over the sidewalls, which would result in loss of material and defeat the purpose of the precision setup.

This process is essentially the same as regular Ice Water Extraction using nylon wash bags, but you use a set of stainless steel screens to filter out the trichomes instead.

Advantages of the Vibrating Screen Method

This method offers several compelling benefits.

Increased purity: It's ideal for further refining resin after an initial wash, giving you an extra level of separation and cleanliness.

Precise separation: Stainless screens provide excellent micron consistency compared to some lower quality mesh fabric bag setups that can stretch or vary.

Efficiency: The vibration does the work for you, reducing labor and physical strain.

Easier to clean: Steel screens are quicker and more durable to rinse than nylon bags. They don't hold onto oils or odors the same way fabric does.

Customizable setup: You can add, remove, or swap screens by micron size depending on what you're trying to achieve with a particular batch.

Challenges and Considerations

Also, this method may not scale easily. Small batch efficiency may not translate well to large operations yet. The dual vessel setup and precise flow control might become impractical at scale.

Finally, this set up requires investment. You need stainless equipment and a solid understanding of micron stacking and flow dynamics. It's not necessarily a beginner-friendly approach.

Is This the Future of Hash?

Could small-scale vibrating screen setups be the next evolution in hash refinement, or are they simply a specialty tool for perfectionists chasing ultra-clean resin?

The honest answer is we don't know yet. Innovation in solventless often comes from people willing to push the boundaries of traditional techniques. This could be one of those moments where a niche method gains traction and becomes standard practice. Or it could remain a specialized approach used by a small group of dedicated refiners.

The only way to find out is through experimentation and honest feedback from the community. If you're intrigued by this method, try it out and share what you learn.

Final Thoughts

Whether you use vibrating screen setups for precision post-processing or as a clean alternative to bags, they offer a fresh way to approach solventless extraction. They might not replace traditional methods entirely, but they expand what's possible.

Solventless is a craft, and every new method is another tool in the toolkit. Some tools become essential. Others serve specific purposes. The key is staying open to innovation while remaining grounded in results.

Let the resin and your results be the judge.
